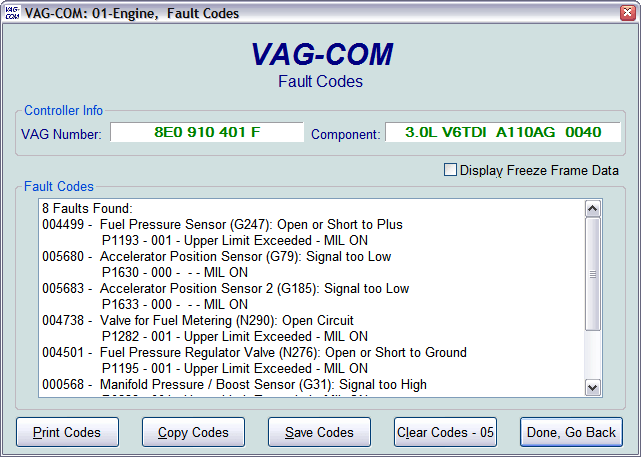

On this screen, VAG-COM shows you any
DTC's (�Diagnostic Trouble Codes� or Fault Codes). VAG-COM shows the DTC numbers
and also decodes each DTC into meaningful text.
At top of the screen,
you have the VAG Number and Component number as shown on the
Open Controller screen.
The

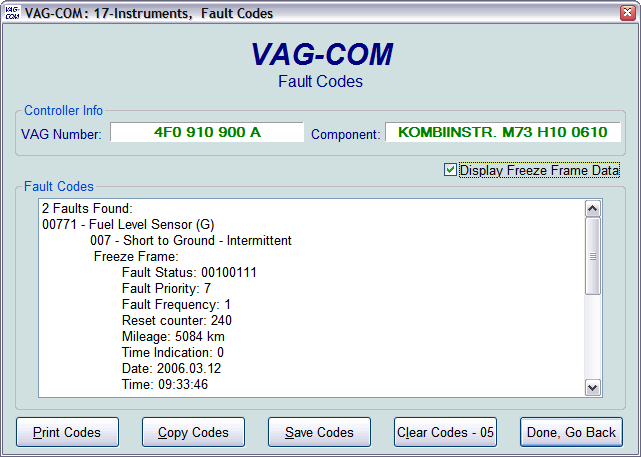

Display Freeze Frame Data
checkbox adds Freeze Frame data for Fault Codes on control modules using
the KWP-2000 protocols. Note: Not all control modules fully
support this; very few cars can currently handle freeze-frame data using
the VAG proprietary protocols. In vehicles that do not support
Freeze Frame, that checkbox will not be present.
One component of Freeze Frame data is the
Fault Priority number as described below:
|
Number |
Meaning |
|
1 |
The fault has a strong
influence on driveability, immediate stop is required. |
|
2 |
The fault requires an
immediate service appointment. |
|
3 |
The fault doesn't require
an immediate service appointment, but it should be
corrected with the next service appointment. |
|
4 |
The fault recommends an
action to be taken, otherwise driveability might be
affected. |
|
5 |
The fault has no influence
on driveability. |
|
6 |
The fault has a long
term influence on driveability. |
|
7 |
The fault has an influence
on the comfort functions, but doesn't influence the
cars drivaebility. |
|
8 |
General Note |
VAG-COM tells you how
many fault codes have been found and displays each of them. The 5-digit
or 7-digit number is a standardized
VAG fault code, which can be searched in the Factory Repair Manuals. The
text is a description of the part and failure mode. The letter and
number combination in parentheses is the DIN Component Identifier.
This is followed by elaborators describing the condition of the fault.
The second line contains the
P-code, or generic OBD-II code (if it exists, there are thousands of VAG
codes without generic OBD-II equivalents).
[Print Codes]
will print a
Fault Code Report. If your PC is not
connected to a printer when this button is pressed, be sure to use
Windows to set the printer to "Work Off-Line" first! Later, when you
connect the PC to a printer, un-check "Work Off-Line" to print the
report.
[Copy Codes]
will copy your fault codes
to Windows Clipboard. Once you have pressed the Copy Codes button, you
may paste the results into the application of your choice, such as MS
Word or Notepad.
[Save Codes]
will save a plain-text
Fault Code Report to your PC, typically
in this directory:
C:\Program Files\VAG-COM\Logs
[Clear Codes
- 05] will erase the DTC's
from the Control Module's memory. Be aware, this does not fix the
problem that caused the fault! DTC's should only be erased after
correcting the condition(s) that caused them in the first place. Note:
There is no way to erase individual DTC's while leaving others alone.
This is not a limitation in VAG-COM it's just the way the VAG protocols
work.
[Done, Go Back] takes you back
to the Controller Information Screen where you can select other functions.
