VAG/ISO <-> RS-232 Interface
|

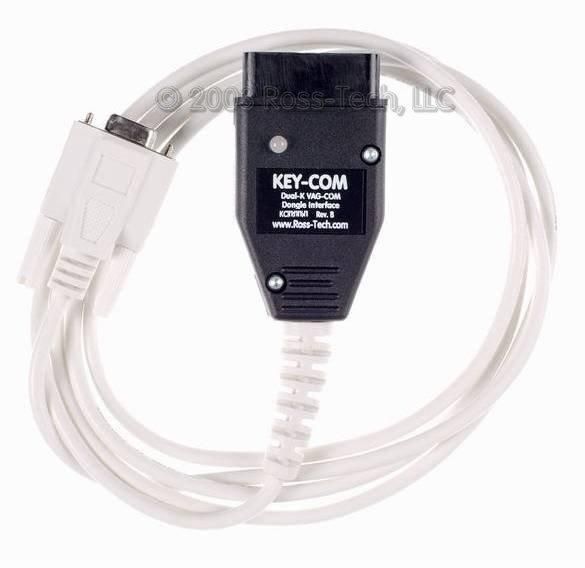

Click for larger picture |
Features:
-
Serial connection, ideal for older,
low-cost laptops or most desktop PCs.
A USB-port version is also available; click here for full specs.
-
Acts as a "dongle".
No "Software activation" required!
When used with this interface, VAG-COM is always
fully-functional on any PC that meets our
requirements.
-
Full support for dual-K
lines found in "new" (B6/8E chassis Audi A4 and
2002+ Audi A6 -- no VAS-6017
required -- no manual switches!
-
OBD-II connector made to our own
specifications. Fits even in the "tight" cars like
'96 Audi A4's, '96/'97 Audi A6's and all European
B5 Passats and B5 Audi A4's.
-
Electronic protection against
over-current conditions on both K1 and K2/L lines, no fuses
required, eliminates the most common failure
mode.
-
Bi-Color (red/green) status/activity
LED
-
12 month guarantee against defects.
|
This interface comes with an OBD-II type
connector which plugs in to most 1994 and newer VW's and
1996 and newer Audis. Most 1990-1995 Audis and
1990-1993 VW's have the "2x2"
data link connector, click here for more info.
Compatibility:
This interface works with most diagnostic-capable VW, Audi, Seat, and Skoda models
from 1990 through 2004 but does not work
with any model requiring a direct CAN connection for diagnostics.
If you have a 2003+, check to see if your car has a
CAN connection.
Computer Requirements:
A 100 Mhz or faster PC running Windows 95 or newer with an
available Serial port. If your PC does not have an available Serial port, you should get the
KII-USB instead.
Extending this Interface:
The cable on this adapter is about 6 feet long -- just
right for use with most laptops. If you want to use this
interface with a desktop PC, you will need a standard serial
(DB9M to DB9F) extension cord. We usually stock
extensions in 15' (3m). See the Accessories Section
of our Store for
pricing.
Resale:
The KEY-COM
acts as a "dongle" for VAG-COM, so VAG-COM will be fully functional on any PC you use with
the this interface. However, product support is provided only
to the original purchaser.
If you
buy a second-hand KEY-COM from someone and want support, you'll still need to pay
$99 to register.
Upgrade Offer:
Out of
production -- no longer available.
Software:
The KEY-COM should be used with the latest
version of VCDS software.
Note:
We do not sell any interfaces as a
"Stand-Alone" products. We only sell them with
our VCDS software.
How to order:
Out of
production -- no longer available.
