VCDS

Windows-based Diagnostic Software
for VW / Audi / Seat / Skoda

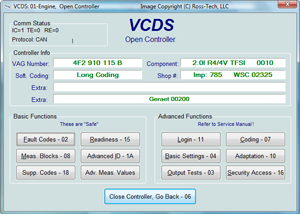

Open Controller

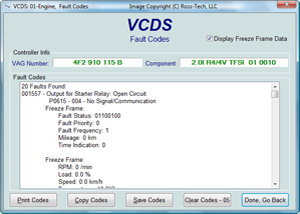

VCDS Dtc Screen

Over a decade of leadership in aftermarket
diagnostics for VW-Audi Group vehicles.

  • 2000:The first truly affordable, full-function diagnostic system for VW/Audi. Constantly updated software has ensured compatibility with all VW, Audi, Seat and Skoda passenger cars through the current model year ever since.
  • 2001: The first tool to allow users to view and log of 3 groups of Measuring Blocks (live data) simultaneously.
  • 2002: The first aftermarket tool which supports 7-Digit SKC codes and is able to access modules requiring proprietary VAG modes on the KWP-2000 protocol (2001+ Teves Mk.60 ABS, numerous 2002+ modules).
  • 2003: The first tool of any sort which displays critical timing information on TDI engines in graphical format and allows graphing of Measuring Blocks (live data) in oscilloscope format via an open-source plug-in.
  • 2004: The first aftermarket tool with full support for new VW/Audi models requiring a direct CAN connection for diagnostics.
  • 2005: The first aftermarket "VAG" tool to include generic OBD-II capabilities at no extra charge and to decypher the new 'Long Codings' used in the latest models.
  • 2006: First to make it easy to find the live data the user is looking for with the Advanced Measuring Values feature, show vital freeze-frame data for fault codes in-line with the DTCs themselves, and incorporate the ability to do Acceleration Measurements.
  • 2007: First aftermarket tool to support Optical Bus Diagnostics and built-in scripts for forcing Readiness Monitors to run.

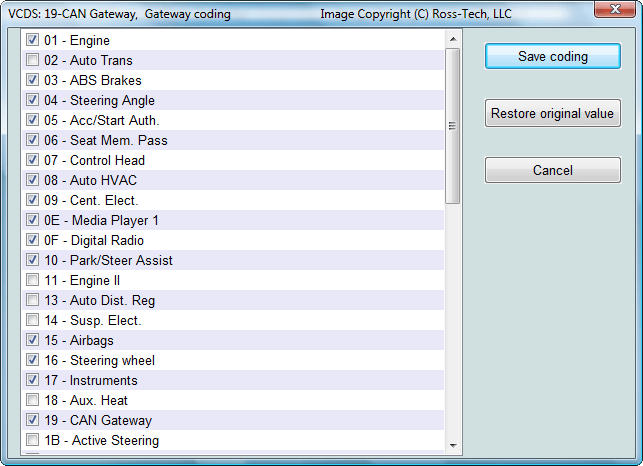

  • 2008: First aftermarket tool to support reading and clearing of DTCs from modules using the new UDS/ODX/ASAM protocols introduced in the Audi B8 platform and first to include a Gateway Coding Assistant.
  • 2009: First aftermarket tool to support Measuring Values, Output Tests, and Adaptations on control modules using the new UDS/ODX/ASAM protocols, and to properly support resetting of all 3 independent counters used for Service Reminders in 2008+ model Audis.
  • 2010: First aftermarket tool to support Basic Settings on control modules using the new UDS/ODX/ASAM protocols, and first to be available as a full 64-bit version for PCs running 64-bit Windows.
  • 2011: First affordable tool with any support at all for VW Crafter vans, and of course compatibility with all the latest 2012 model VW/Audi Group passenger cars.

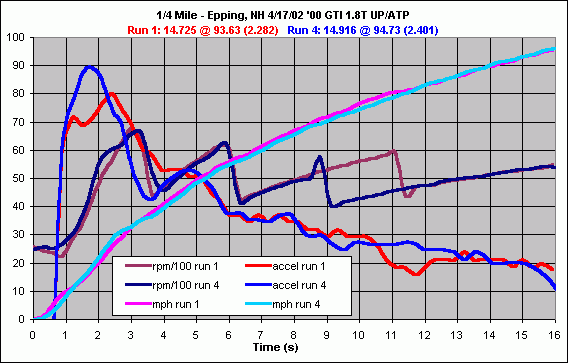

An example of data collected with VAG-COM and plotted with Excel. Andy Smith logged measuring block 005 data in his 2000 VW GTI 1.8T during a 1/4 mile drag racing at New England Dragway. If you try this at home, make sure your laptop is snugly belted into the passenger seat :-)
