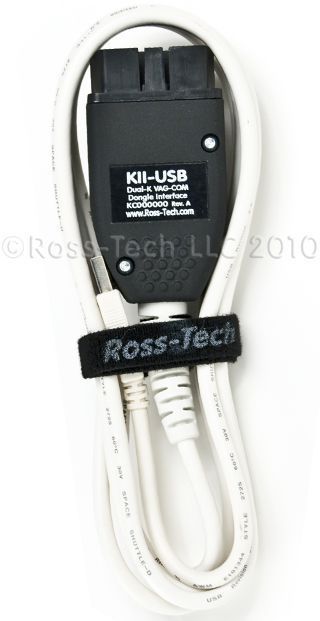

KII-USB
KII-USB
Dual-K VAG <-> USB Communications Interfaces
(Out of production -- no longer available)
Click for larger picture |
Features:
-
USB connector plugs into most modern laptops! (USB 1.1
or 2.0)
-
Acts as a "dongle".
No "Software Activation"
required! When used with this interface,
VCDS is always fully-functional on any PC that meets our
requirements.
-

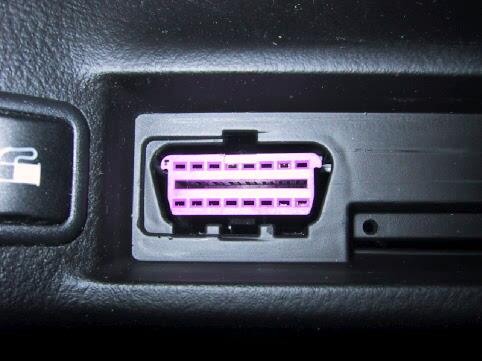

OBD-II connector made to our own specifications. Fits
even in the "tight" cars like '96 Audi A4's, '96/'97 Audi
A6's and all European
B5 Passats and B5 Audi A4's.
-
Fully automatic support of for dual-K lines found in "new"
B6/8E chassis Audi A4 and 2002+ Audi A6 -- no
VAS-6017required -- no manual switches!
-
Electronic protection against over-current conditions on
both K1 and K2/L lines, no fuses required, eliminates the
most common failure mode.
-
Bi-Color (red/green) status/activity LED
-
12 month guarantee against defects.
|
These interfaces come with an
OBD-II type connector which plugs in to most 1994 and newer
VW's and 1996 and newer Audis. Many 1990-1995
Audis and 1990-1993 VW's have the "2x2"
data link connector, click here for more info.
Compatibility:
These interfaces work with most
diagnostic-capable VW, Audi, Seat, and Skoda models from 1990
through 2004 but does not work
with any model requiring a direct CAN
connection for diagnostics. If you have a 2003+,
check to see if your car has a
CAN connection.
The KII-USB does not
support
Turbo Mode, the
Clear All DTCs function or
Activating/De-Activating Transport Mode. A
HEX-USB+CAN
(or other newer interface)
is needed for those functions.
Computer Requirements:
We recommend at least a 1 GHz
Pentium-3 (or AMD equivalent) with 128 MB of RAM and Windows
XP or newer. Windows Vista , 7, 8, or 10 on a machine
robust enough to support the respective operating system are
also fine.
As of version
10.6, we no longer support Windows 95, 98, ME or NT4.
If you're using a PC that has a
CPU speed less than 1 GHz and which has a Serial port, then
you should consider the Serial
HEX-COM+CAN
instead.
Extending this Interface:
The cable on these interfaces are about 6 feet long -- just
right for most laptops. The
USB standards
do not allow for passive extension cords!
We have tested many Active USB extensions and have found one
that works. You can order the
16-ft Active USB Extension from our
Store. We do
not sell or support any other brands or models of USB
extensions, if you have problems when using one, the
first thing we're going to tell you is to eliminate the
extension.
If you plan to use a desktop PC, we recommend you buy the
Serial HEX-COM+CAN instead.
Resale:
The
interfaces act as a "dongle" for VCDS (VAG-COM), so VCDS
should be fully functional on any PC when used with this
interface. However, product support is provided only to the
original purchaser.
If you buy a
second-hand interface from someone and want support, you'll
still need to pay $99 to
register.
Upgrade Offer:
Out of production. No longer available.
Software:
These interfaces should be
used with the latest version
of VCDS software.
Known Issues:
This interface performs best with Windows XP, Vista or 7.
It can be used with Windows 2000, but performance
may be somewhat degraded if using Windows 2000 and
compatibility with "difficult" control modules may be
reduced.
Notes:
-
These
interfaces require a special driver to be installed on
your PC. It does not emulate a COM port.
That means this interface will not work with any
other software besides VCDS.
-
We do
not sell any interfaces as a "Stand-Alone" products.
We only sell them with our
VCDS software.
Driver Installation:
Click here for
complete driver installation instructions.
How to order:
Out of production. No longer available.
