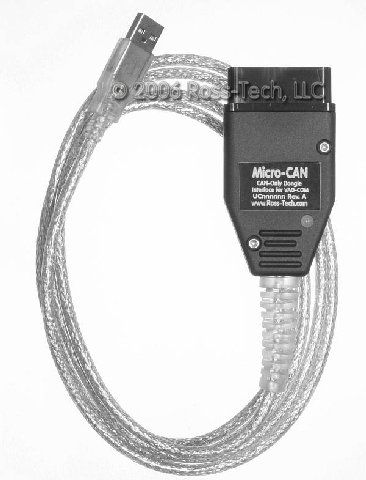

This interface comes with an OBD-II type connector which plugs directly into all VW, Audi, Seat, and Skoda cars which are compatible with this interface.

Compatibility:

This interface is compatible only with cars with diagnostics based on Mk.5 Golf technology.

• All Golf platform cars (Mk5/Mk6/Mk7 platform) including:

  • 2003+ VW Touran (1T chassis)

  • 2004+ VW Golf/Rabbit/GTI (1K chassis) (2010+ models may have AJ in the VIN)

  • 2004+ VW Caddy (2K chassis)

  • 2004+ Audi A3/S3 (8P chassis) (2010+ models may have FM in the VIN)

  • 2004+ Seat Altea (5P chassis)

  • 2004+ Skoda Octavia (1Z chassis)

  • 2005+ Seat Toledo (5P chassis)

  • 2005+ Golf Plus (5M chassis)

  • 2005+ Seat Leon (1P chassis)

  • 2005.5+ Jetta/GLI (1K chassis)

  • 2006+ Eos (1F chassis) (2010+ models may have AH in the VIN)

  • 2007+ Audi TT (8J chassis) (2010+ models may have FK in the VIN)

  • 2007+ VW Golf Variant/Wagon (1K chassis)

  • 2008+ VW Tiguan (5N chassis) (2010+ models may have AX in the VIN)

  • 2008+ Audi A3 Cabriolet (8P chassis)

  • 2009+ VW Golf (5K chassis)

  • 2011+ VW Jetta (16/AJ chassis)

  • 2012+ VW Beetle (5C/AT chassis)

  • 2013+ VW Golf Mk7 5G/AU chassis)

  • 2013+ Audi A3/S3 8V/FF chassis)

  • 2013+ Seat Leon (Rest-of-World) (5F chassis)

  • 2013+ Skoda Octavia (Rest-of-World) (5E/NE chassis)

  • 2015+ Audi TT (Rest-of-World) (8S/FV chassis)

• 2005.5+ VW Passat (3C chassis) (2010+ models may have AN in the VIN)

• 2008+ VW Passat CC (35 chassis) (2010+ models may have AN in the VIN)

• 2008+ Skoda Superb (3T chassis)

• 2009+ VW Scirocco (13 chassis)

• 2010+ Skoda Yeti (5L chassis)

• 2011+ VW Sharan (7N chassis)

• 2011+ Seat Alhambra (71 chassis)

• 2011+ Audi Q3 (8U/FS chassis)

• 2012+ VW Passat (NMS) (A3 chassis)

• 2015+ VW Polo (6C chassis)

• 2015+ Skoda Superb III (3V chassis)

• 2015+ VW Passat B8 (Rest-of-World) (3G chassis)

If your car's chassis type isn't on this list, it's not compatible with this interface!   All of these chassis-types are the latest generation of that model.   Previous generations of the same model are not compatible and should use a KII- or HEX- series interface instead.

If you're not certain, please check your car's VIN.  The 7th and 8th digit have the chassis code.
For example: WAUMF78P06A0NNNNN is an 8P-chassis Audi A3.

NOTE: The Micro-CAN is not compatible with any 2019 or newer model car.   2019 and newer models require one of our current interfaces.   Upgrades are available here.

Limitations:

The Micro-CAN does not support Turbo Mode, the Clear All DTCs function or Activating/De-Activating Transport Mode. A HEX-USB+CAN or newer interface is needed for those functions.

Computer Requirements:

We recommend at least a 1 GHz Pentium-3 (or AMD equivalent) with 128 MB of RAM and Windows XP or newer.  Windows Vista, 7, 8, or 10 on a machine robust enough to support the respective operating system are also fine.  As of version 10.6, we no longer support Windows 95, 98, ME or NT4. If you're using a PC that has a CPU speed less than 1 GHz and which has a Serial port, then you should consider the Serial HEX-COM+CAN instead.

Extending this Interface:

The cable on this interface is about 6 feet long -- just right for most laptops.    The USB standards do not allow for passive extension cords!    We have tested many Active USB extensions and have found one that works. You can order the 16-ft Active USB Extension from our Store. We do not sell or support any other brands or models of USB extensions, if you have problems when using one,  the first thing we're going to tell you is to eliminate the extension.

Resale:

The Micro-CAN acts as a "dongle" for VCDS, so VCDS should be fully functional on any PC when used with this interface. However, product support is provided only to the original purchaser.  If you buy a second-hand Micro-CAN from someone and want support, you'll still need to pay $99 to register.

Software:

The Micro-CAN must be used with a current version of VCDS.  It does not work with VCDS-Lite.

Notes:

• This interface requires a special driver to be installed on your PC.  It does not emulate a COM port.
  That means this interface will not work with any other software besides VCDS.

• We do not sell any interfaces as a "Stand-Alone" products.
  We only sell them with our VCDS software.

Driver Installation:

Click here for complete driver installation instructions.

How to order:

This product is discontinued and no longer available.

---
